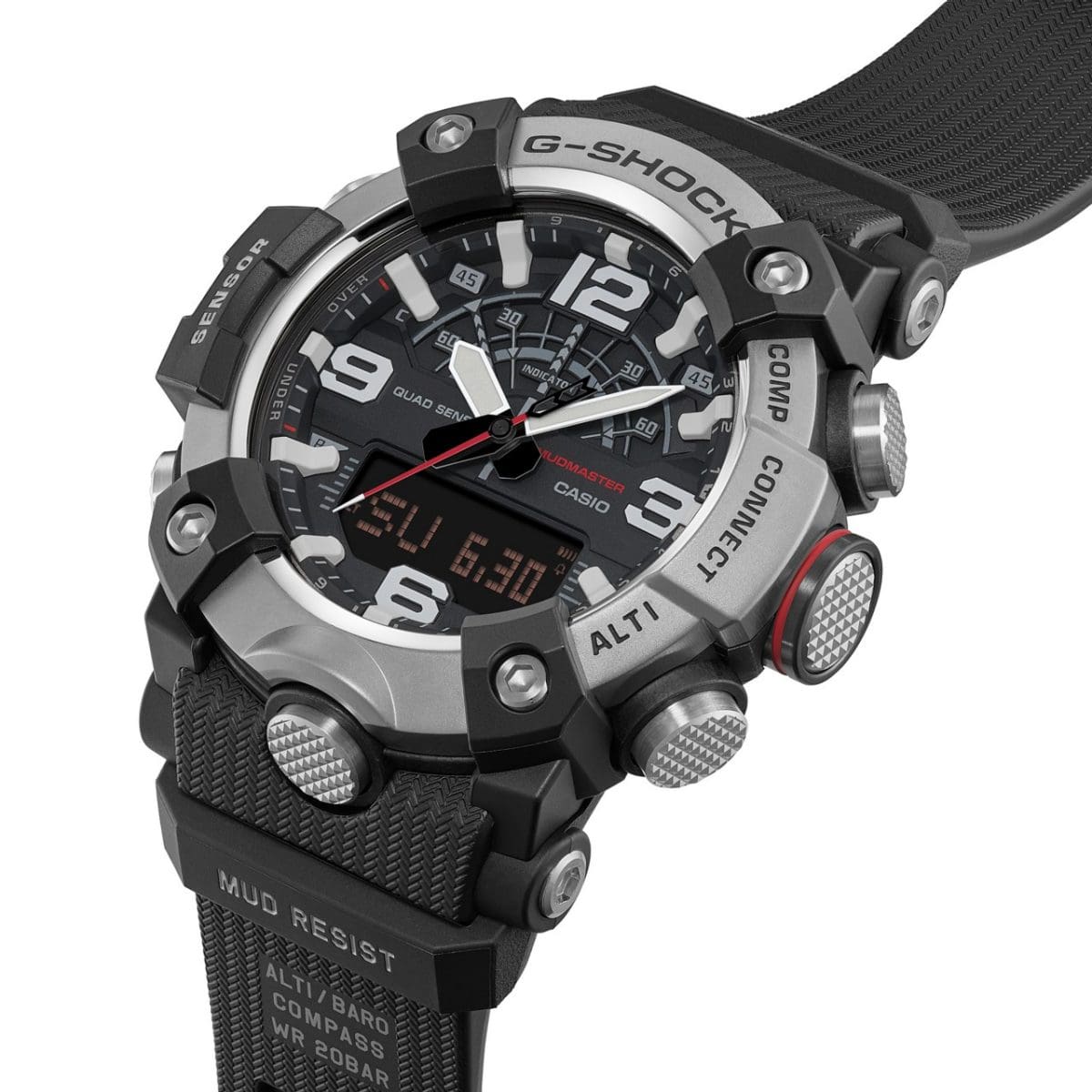

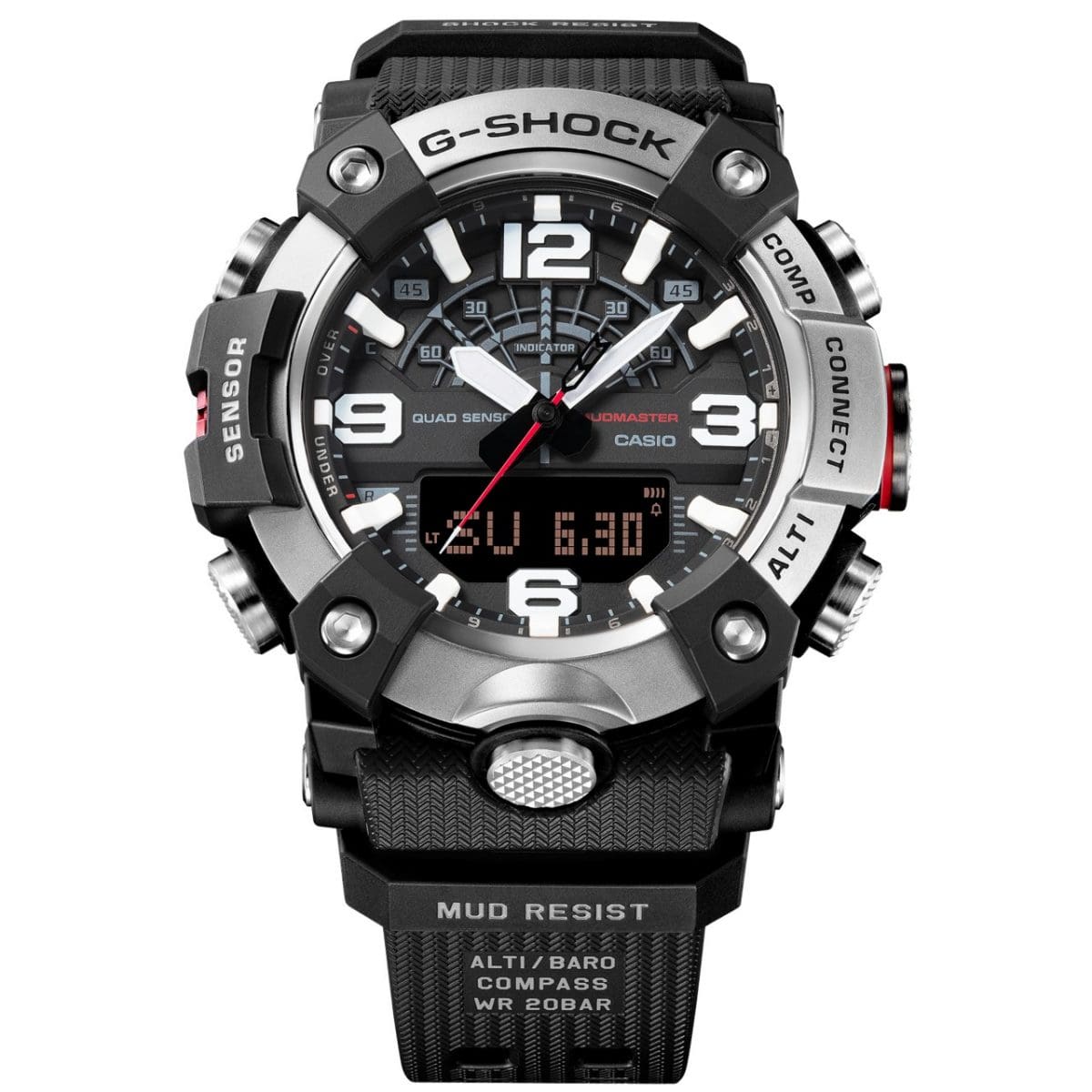

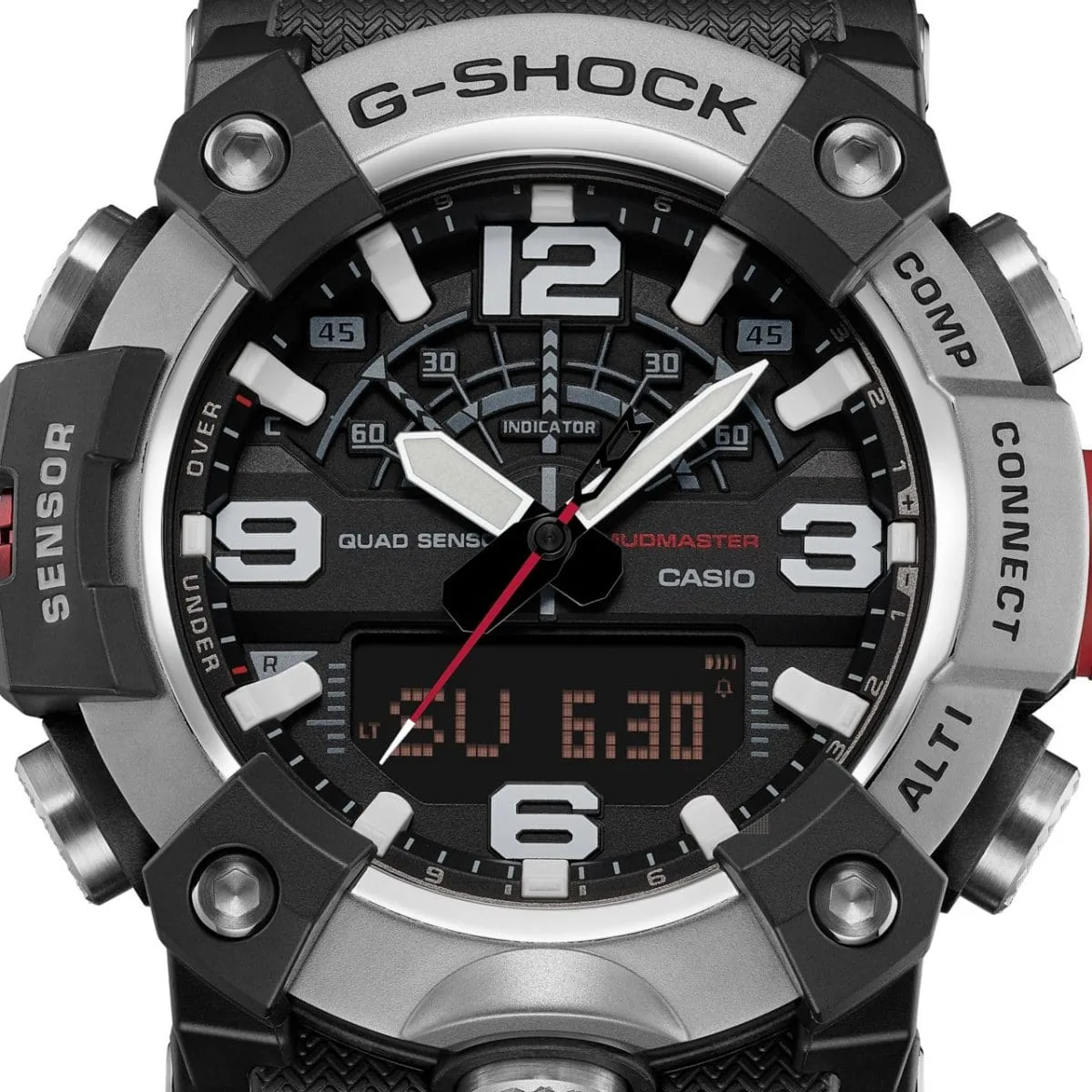

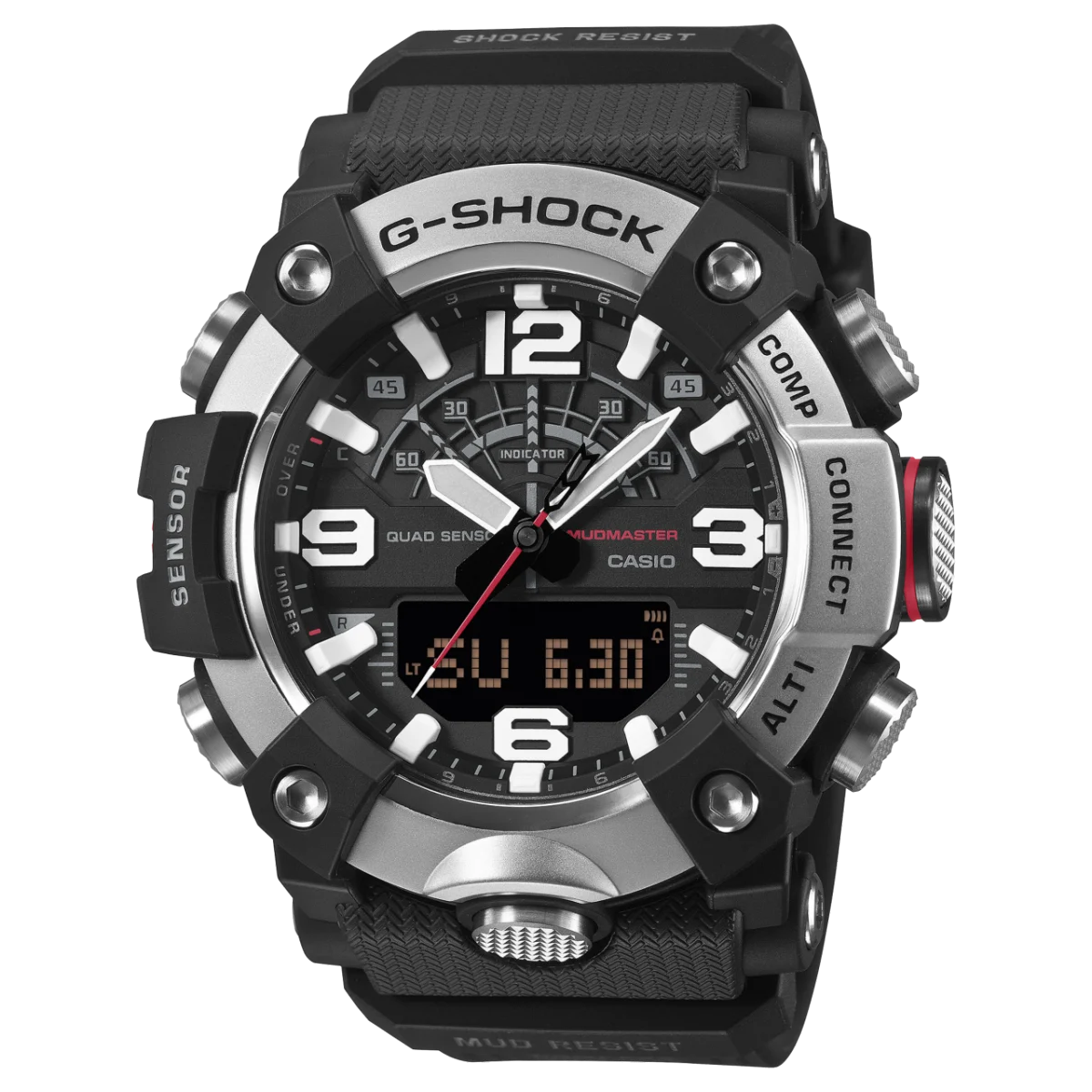

Casio G-Shock Mudmaster Master Of G Series – GGB100XM-1A

For the fearless adventurer and nature lover, a tough and rugged Master of G MUDMASTER featuring bezel and case constructed of heavy duty carbon and environmentally responsible materials.

The watches of the G-SHOCK Master of G line, developed for professionals working in the harshest environments, come equipped with even tougher functionality. And the MUDMASTER takes this another step further with the ability to handle the roughest rubble and debris-strewn terrains, earning the appreciation and trust of rangers and rescue teams operating in extreme environments.

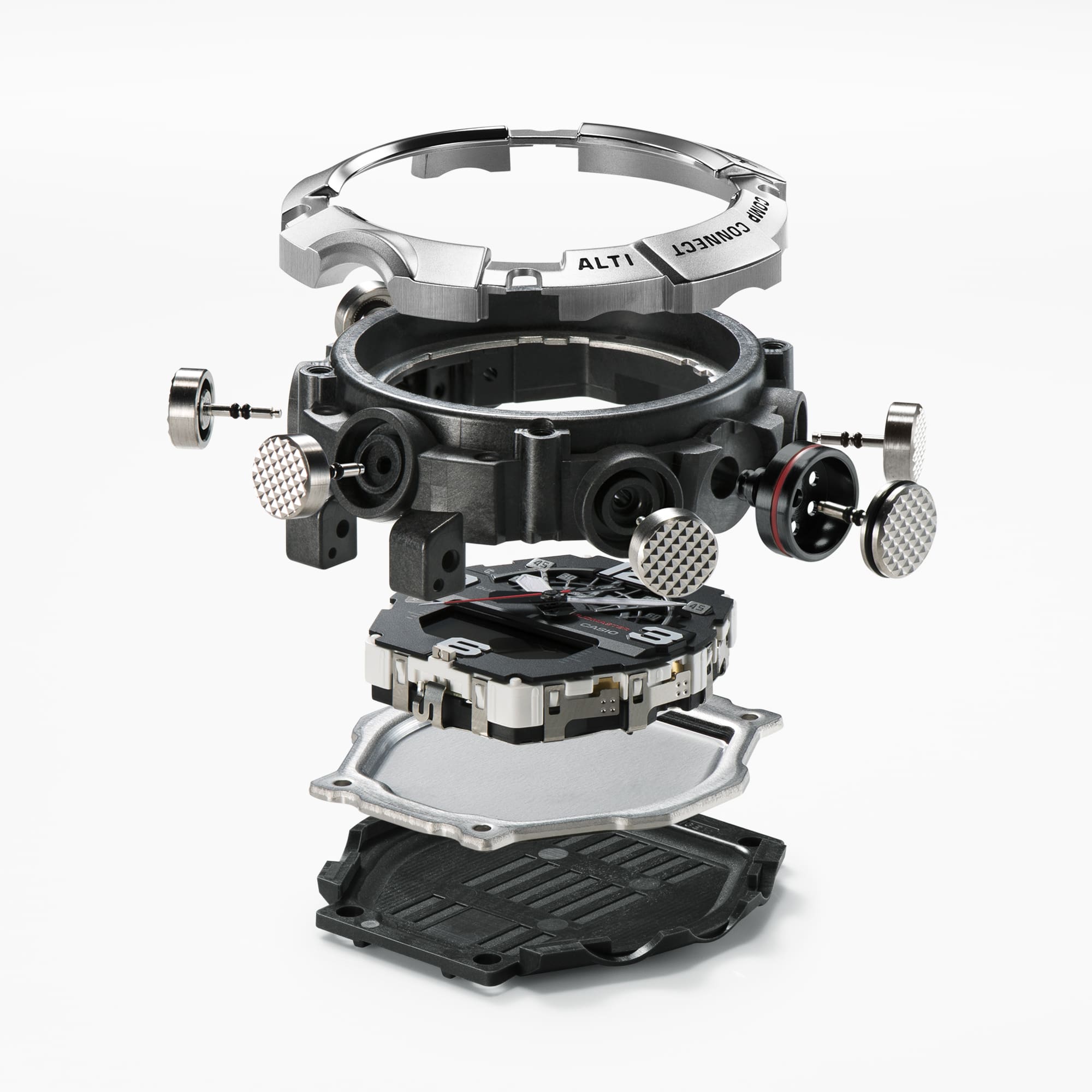

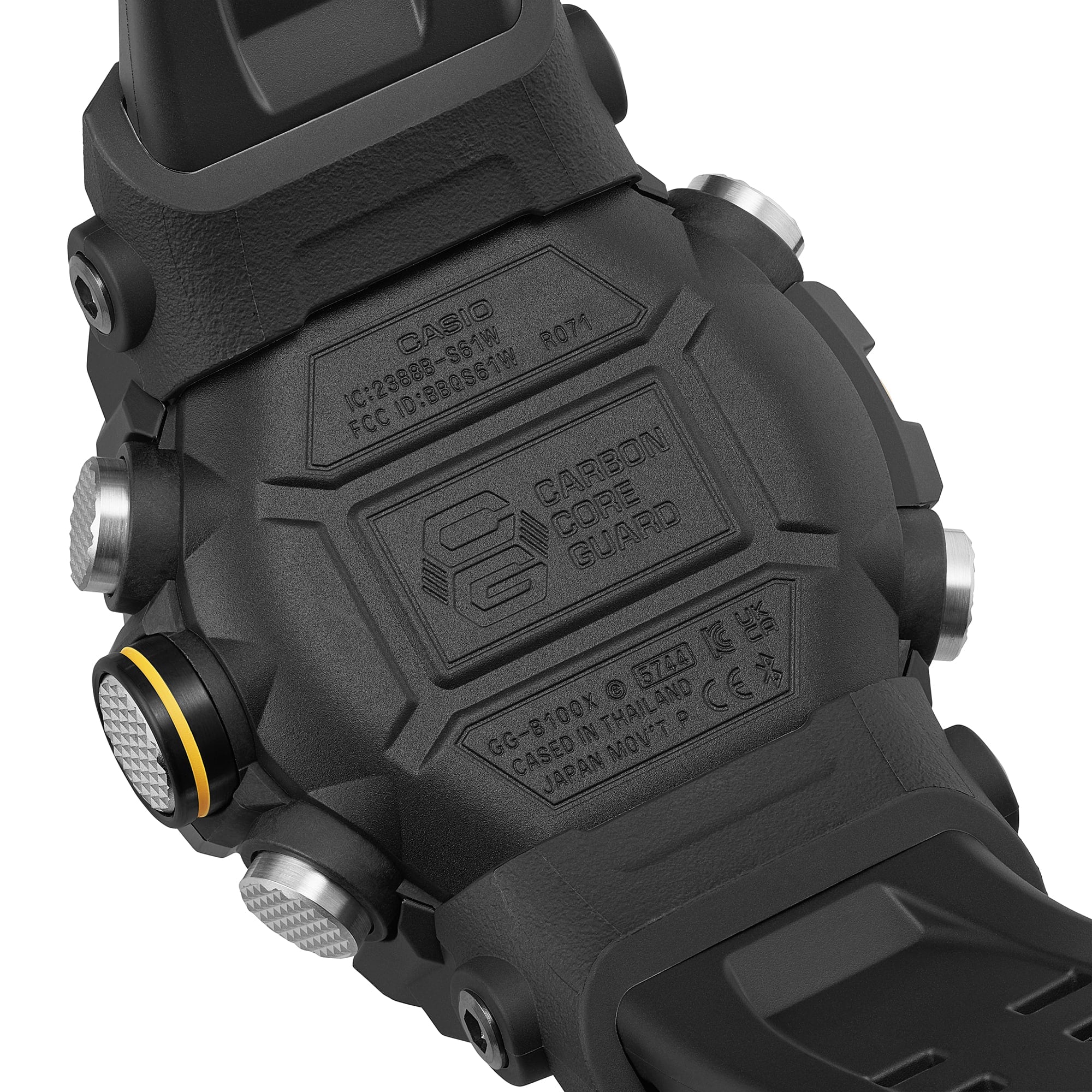

The MUDMASTER GG-B100X employs high rigidity carbon for the carbon fiber-reinforced case to keep damage and warping at bay and ensure a tight seal and excellent shock resistance. Featuring a filter to protect against mud, a stainless-steel panel back, and a back cover made of shock-resistant fine resin embedded with glass fibers, it provides a high level of resistance to dust and mud. The bezel also uses three layers of fine resin with carbon fiber inserts. The rugged design evokes the gasoline jerrycans mounted to off-road vehicles tough enough to traverse the most challenging terrain. Key components for the case and band are made with bio-based resin. Produced using renewable organic resources, this material is expected to help reduce environmental impact.

Practical and functional, the watch is equipped with digital compass, altimeter/barometer, and thermometer, as well as step counter. Easily correct the time using the dedicated app and tap into loads of other useful features including the Mission Log, which automatically records altitude data obtained from the watch and route data obtained by your smartphone.

You can depend on this tough timepiece to deliver what you need to make quick decisions and take decisive action.

Basic Information

Case size (L× W× H)
55.4 × 51.3 × 19.4 mm

Weight
104 g

Case and bezel material
Bio-based Carbon / Stainless steel

Band
Bio-based resin band

Construction
Shock Resistant
Mud Resistant
Carbon Core Guard structure

Water resistance
200-meter water resistance

Time adjustment
Bluetooth: Connects to a smartphone and automatically adjusts the time

Power supply and battery life
Approx. battery life: 2 years on CR2025

Sensor feature
Step count using a 3-axis acceleration sensor: 0 to 999,999 step count display range
Power Saving: Auto sensor sleep state entry after fixed period of non-activity
Altimeter
Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.)
Measuring unit: 1 m (5 ft.)
Hand indication graph of altitude differential
Manual memory measurements (up to 14 records, each including altitude, date, time)
Auto log data (High/low altitudes, cumulative ascent and descent)
Others: Relative altitude readings (±100 m /±1000 m), selectable measurement interval: 5 seconds or 2 minutes (1 second for first 3 minutes only)
*Changeover between meters (m) and feet (ft)
Barometer
Measuring range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Measuring unit: 1 hPa (0.05 inHg)
Hand indication of pressure differential (±10 hPa)
Atmospheric pressure tendency graph (last 20 hours or last 56 hours)
Barometric pressure tendency information alarm (beep and arrow indicates significant changes in pressure)
The atmospheric pressure tendency graph can show the last 20 minutes or last 56 minutes of measurements.
The hand indication of pressure differential shows values in units of ±0.1 hPa.
*Changeover between hPa and inHg
Digital compass
Measures and displays direction as one of 16 points
Measuring range: 0 to 359°
Measuring unit: 1°
60 seconds continuous measurement
Hand indication of north
Magnetic declination correction
Direction calibration (2-point calibration, figure eight calibration, auto calibration)
Thermometer
Measuring range: -10 to 60℃ (14 to 140℉)
Measuring unit: 0.1℃ (0.2℉)
*Changeover between Celsius (℃) and Fahrenheit (℉)

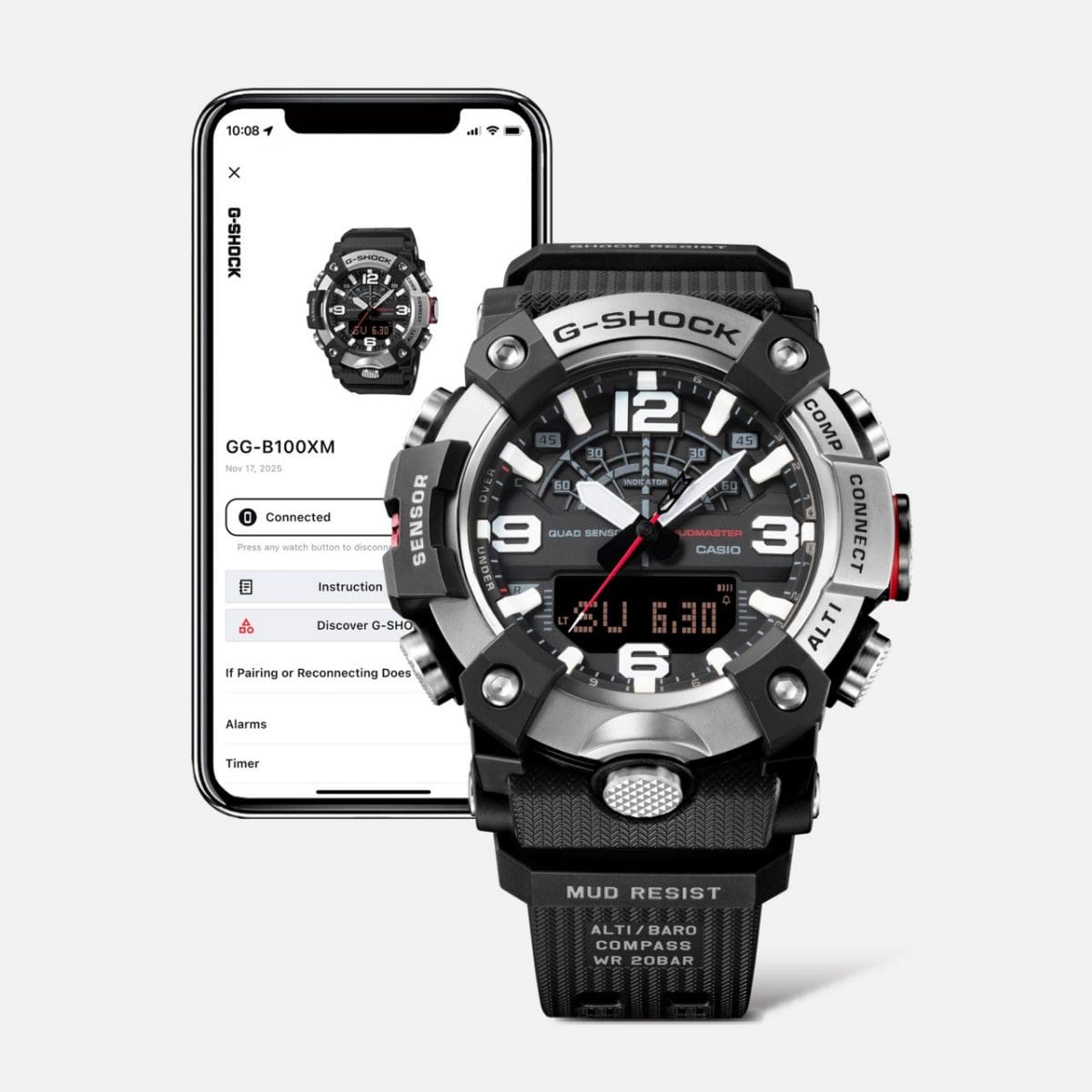

Smartphone Link/App Connectivity Features

Smartphone Link feature
Mobile link (Wireless linking using Bluetooth®)

Apps
CASIO WATCHES

App connectivity feature
Auto time adjustment
Easy watch setting
Approximately 300 world time cities
Life log data
Mission log
Location Indicator
Location Memory
Mode/Display switching customisation
Auto altitude correction
Phone finder

Exterior

Glass
Mineral Glass
Spherical Glass

Compatible band size
145～215mm

Other
Neobrite
Carbon fiber bezel

Watch Features

World time
38 time zones (38 cities + coordinated universal time), daylight saving on/off, Home city/World time city swapping

Sunrise/sunset display
Sunrise, sunset time display
Sunrise time and sunset time for specific date

Stopwatch
1/100-second stopwatch
00’00”00~59’59”99 (for the first 60 minutes)
1:00’00~23:59’59 (after 60 minutes)
Measuring unit:
1/100 second (for the first 60 minutes)
1 second (after 60 minutes)
Measuring modes: Elapsed time, split time, 1st-2nd place times

Timer
Countdown timer
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 second to 24 hours (1-minute increments and 1-hour increments)

Alarm/hourly time signal
5 daily alarms
Hourly time signal

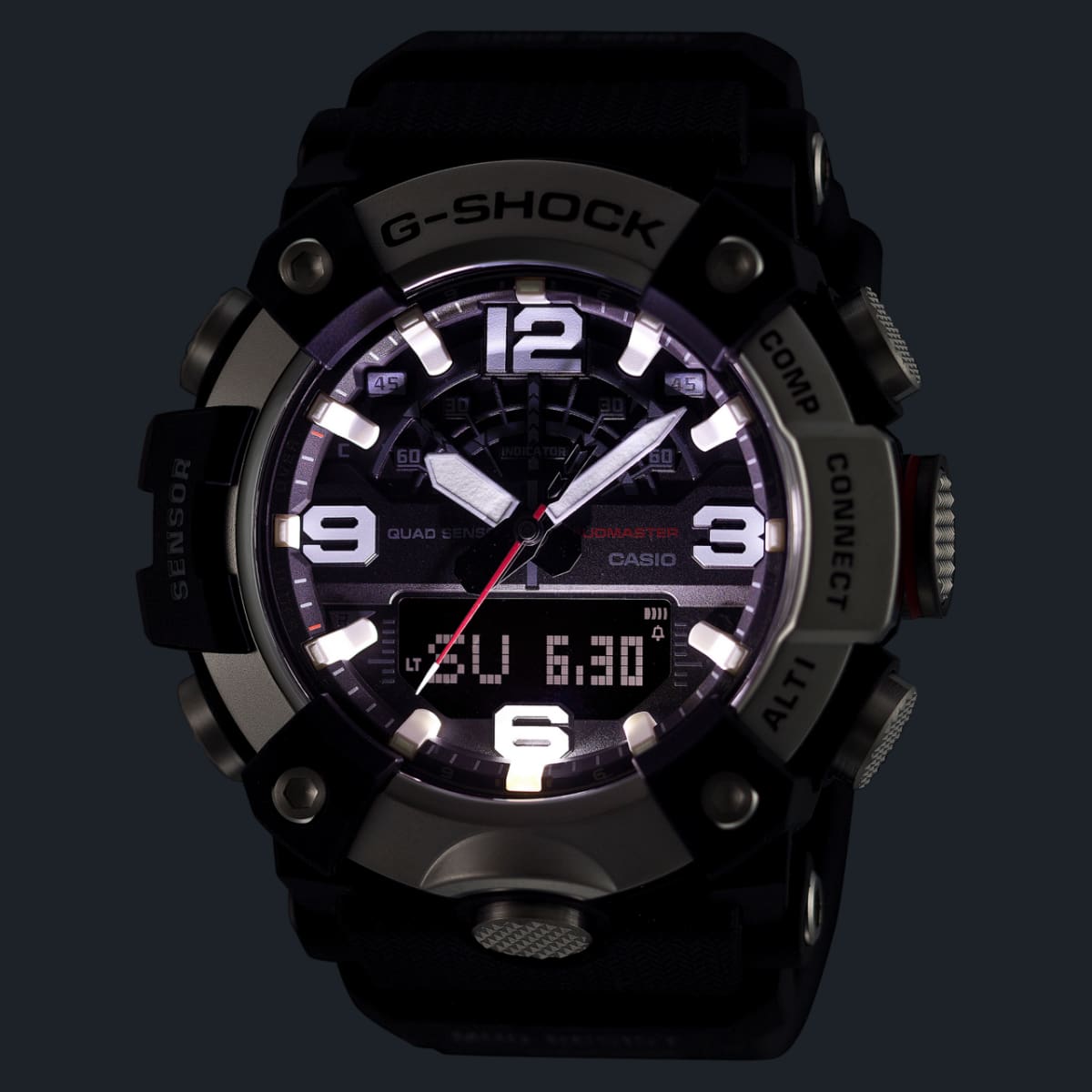

Light
Double LED light
LED light for the face (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
LED backlight for the digital display (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)

Light colour
LED:White

Calendar
Full auto-calendar (to year 2099)

Mute feature
Button operation tone on/off

Accuracy
Accuracy: ±15 seconds per month (with no mobile link function)

Other features
12/24-hour format
Hand shift feature (Hands move out of the way to provide an unobstructed view of digital display contents.)

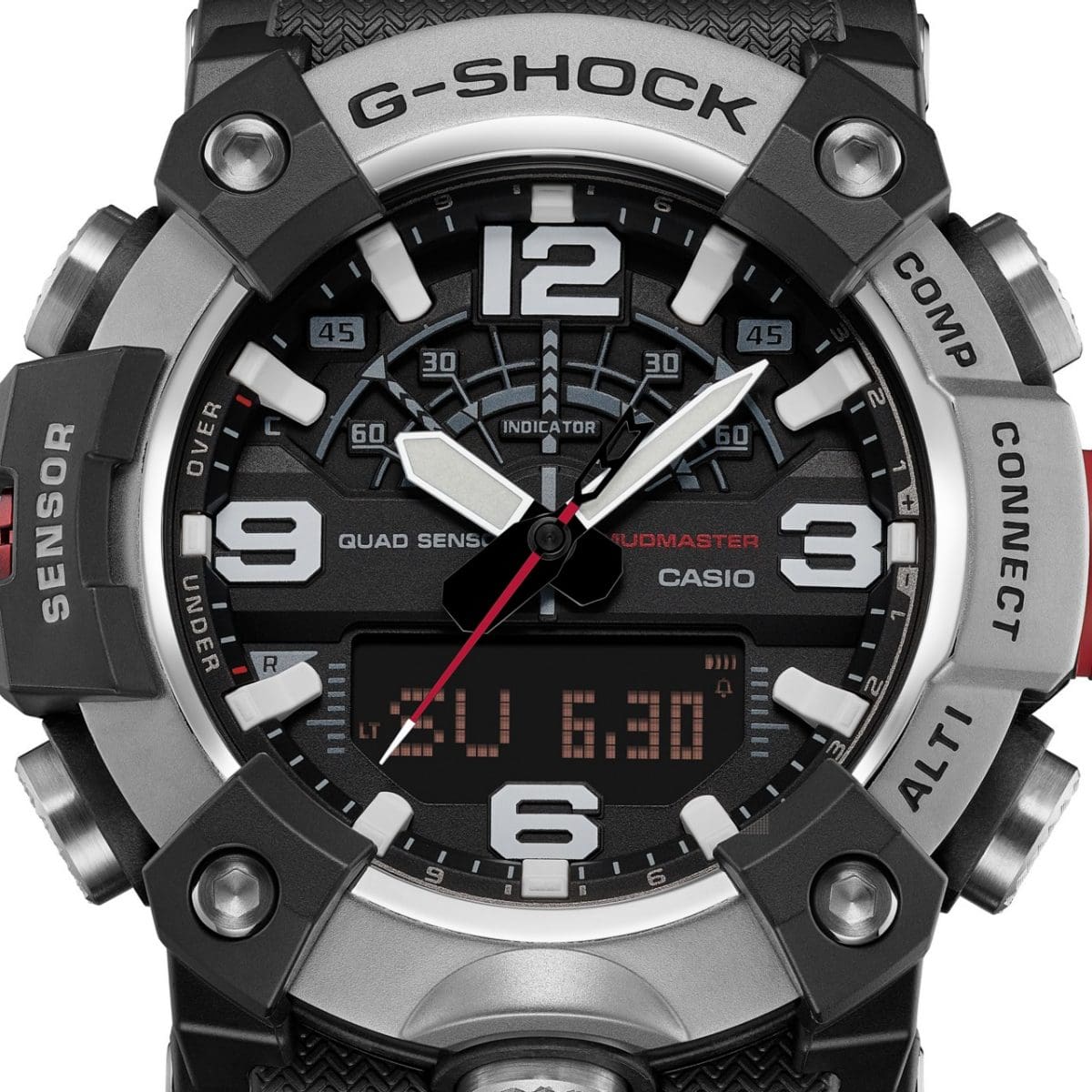

Regular timekeeping:
Analog: 3 hands (hour, minute (hand moves every 10 seconds), second)
Digital: Hour, minute, second, am/pm, month, date, day
